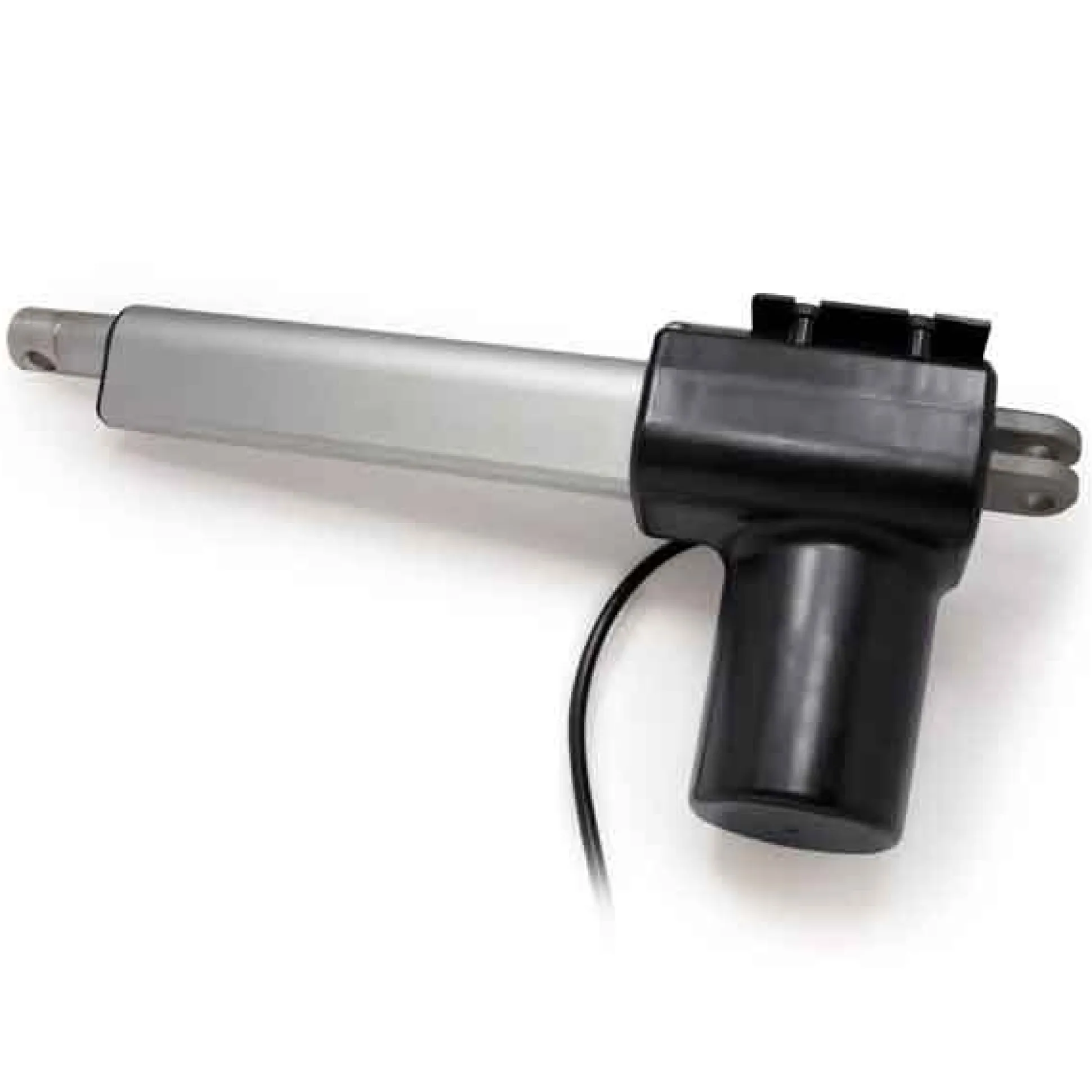

Master Equipment Rep Lift Mechanism for X-Tend Electric Dog Grooming Tables

This Master Equipment Replacement Electric Lift
Mechanism is designed specifically for the Master
Equipment X-Tend Electric Grooming Table (TP7144).

• Includes one Replacement Electric Lift Mechanism
• This electric lift mechanism is not compatible with other
  Master Equipment electric tables

Material: Polypropylene and metal
Dimensions: 16½” x 7¾” x 4″

Instructions to Replace Electric Lift
Mechanism – Tools needed: Philips-Head
Screwdriver, Hammer or Mallet

1. Using a philips-head screwdriver, loosen the screws from
   the electrical control box cover. Remove the cover.
2. Unplug the cord that connects the electrical control box
   to the electric lift mechanism.
3. Use a philips-head screwdriver to pull out the snap rings
   from the locking pins on the electric lift mechanism.
4. Use a hammer or mallet to tap out the two locking pins
   from the base and tip of the electric lift mechanism.
5. Remove the old electric lift mechanism.
6. Insert the new electric lift mechanism into the grooming
   facility.
7. Insert one of the locking pins into the attachment hole
   at the top of the electric lift shaft and rotate
   counterclockwise to extend, until the tip reaches the
   mounting brackets on the table frame.
8. Remove the locking pin, slide the top of the electric
   lift shaft into place between the mounting brackets, and
   reinsert the locking pin through the mounting brackets and
   the top of the electric lift shaft.
9. Slide the other locking pin through the mounting brackets
   at the base of the electric lift mechanism.
10. Using a hammer, knock both locking pins into place
11. Replace the snap rings to secure the locking pins

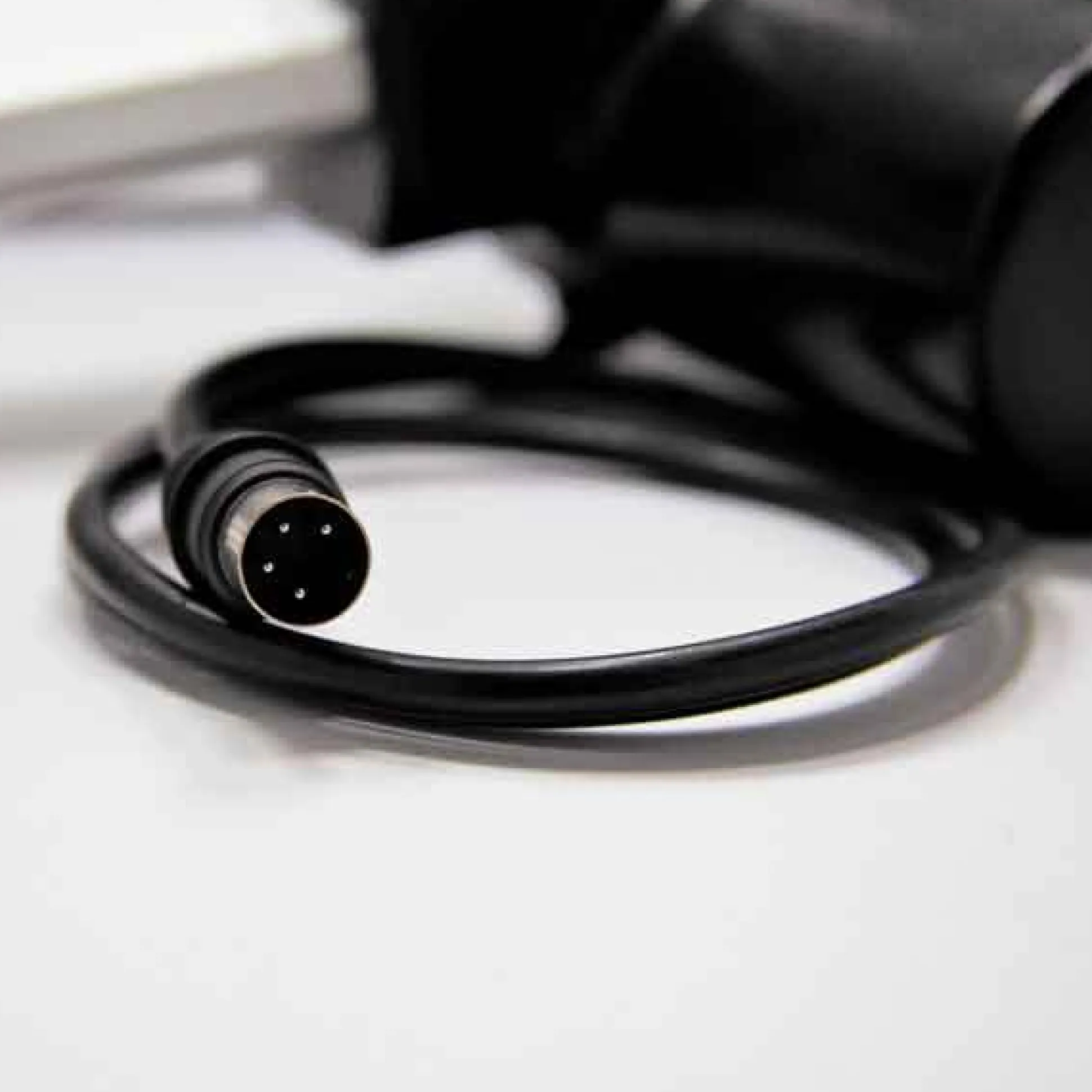

12. Slide the cord from the new electric lift mechanism
    through the rubber gasket on the electrical control box
13. Plug the cord from the new electric lift mechanism into
    the correct port on the electrical control box.
14. Place the cover back onto the electrical control box.
    Using a philips-head screwdriver, replace the screws and
    tighten to secure in place.
