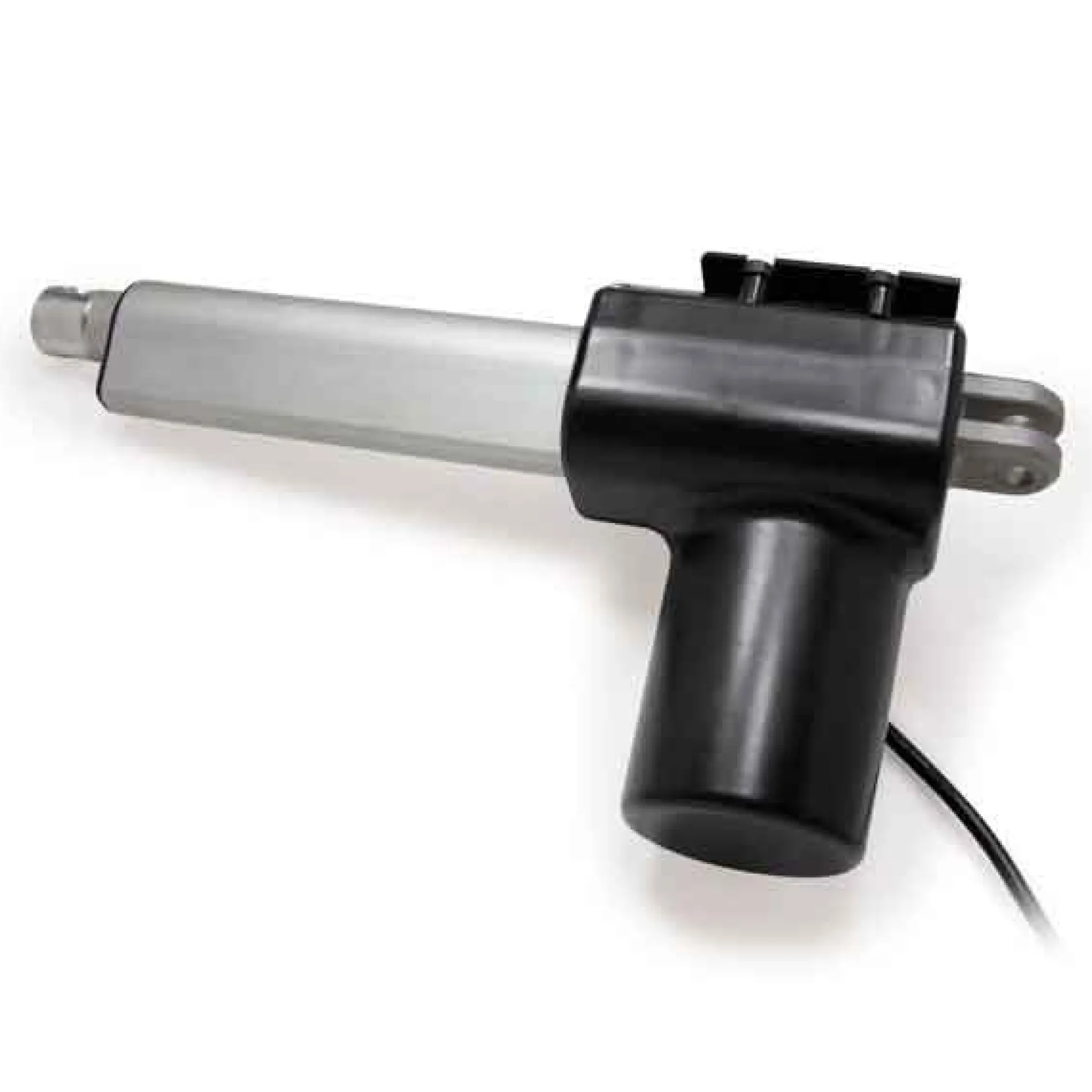

Master Equipment Rep Electric Lift for Pro Equipment

Update your dog washing station. This Master
Equipment Replacement Electric Lift Mechanism is
compatible with:

• Master Equipment Superior Stainless Electric Tables
  (TP8657)
• Master Equipment Z-Lift II Electric Tables (TP8639)
• Master Equipment Flex Electric Tables (TP074)
• Master Equipment Electric Grooming Tables with Remote
  Control Lifts (TP7000)
• Master Equipment Bone-Shaped Electric Tables
  (TP0129)
• Master Equipment Electric Ease Grooming
  Table(TP1080)
• Master Equipment PolyPro Lift Grooming Tubs (TP5856)

Includes one Replacement Electric Lift Mechanism.

This electric lift mechanism is not compatible with the Master
Equipment X-Tend Electric Grooming Tables (TP7144),Master
Equipment Origin Electric Table (TP1515),orMaster
Equipment Electric Table (TP15140).

Material: Polypropylene, metal
Dimensions: 14¼” x 7¾” x 4″

Instructions to Replace Electric Lift Mechanism
– Tools needed: Philips-Head Screwdriver, Hammer or
Mallet

1. Using a philips-head screwdriver, loosen the screws from
   the electrical control box cover. Remove the cover.
2. Unplug the cord that connects the electrical control box
   to the electric lift mechanism.
3. Use a philips-head screwdriver to pull out the snap rings
   from the locking pins on the electric lift mechanism.
4. Use a hammer or mallet to tap out the two locking pins
   from the base and tip of the electric lift mechanism.
5. Remove the old electric lift mechanism.
6. Insert the new electric lift mechanism into the grooming
   facility.
7. Insert one of the locking pins into the attachment hole
   at the top of the electric lift shaft and rotate
   counterclockwise to extend, until the tip reaches the
   mounting brackets on the table frame.
8. Remove the locking pin, slide the top of the electric
   lift shaft into place between the mounting brackets, and
   reinsert the locking pin through the mounting brackets and
   the top of the electric lift shaft.
9. Slide the other locking pin through the mounting brackets
   at the base of the electric lift mechanism.
10. Using a hammer, knock both locking pins into place.
11. Replace the snap rings to secure the locking pins.

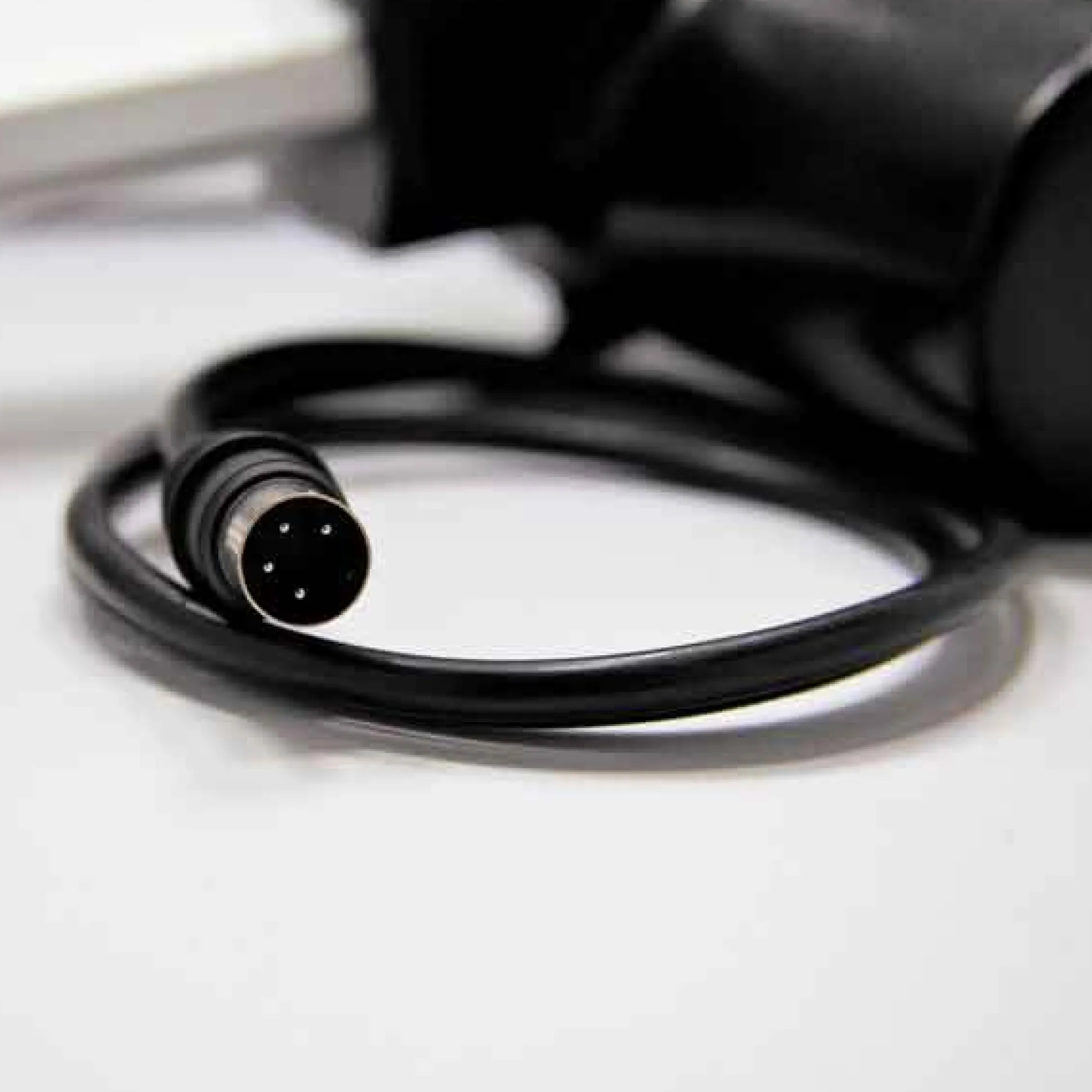

12. Slide the cord from the new electric lift mechanism
    through the rubber gasket on the electrical control box.
13. Plug the cord from the new electric lift mechanism into
    the correct port on the electrical control box.
14. Place the cover back onto the electrical control box.
    Using a philips-head screwdriver, replace the screws and
    tighten to secure in place.
