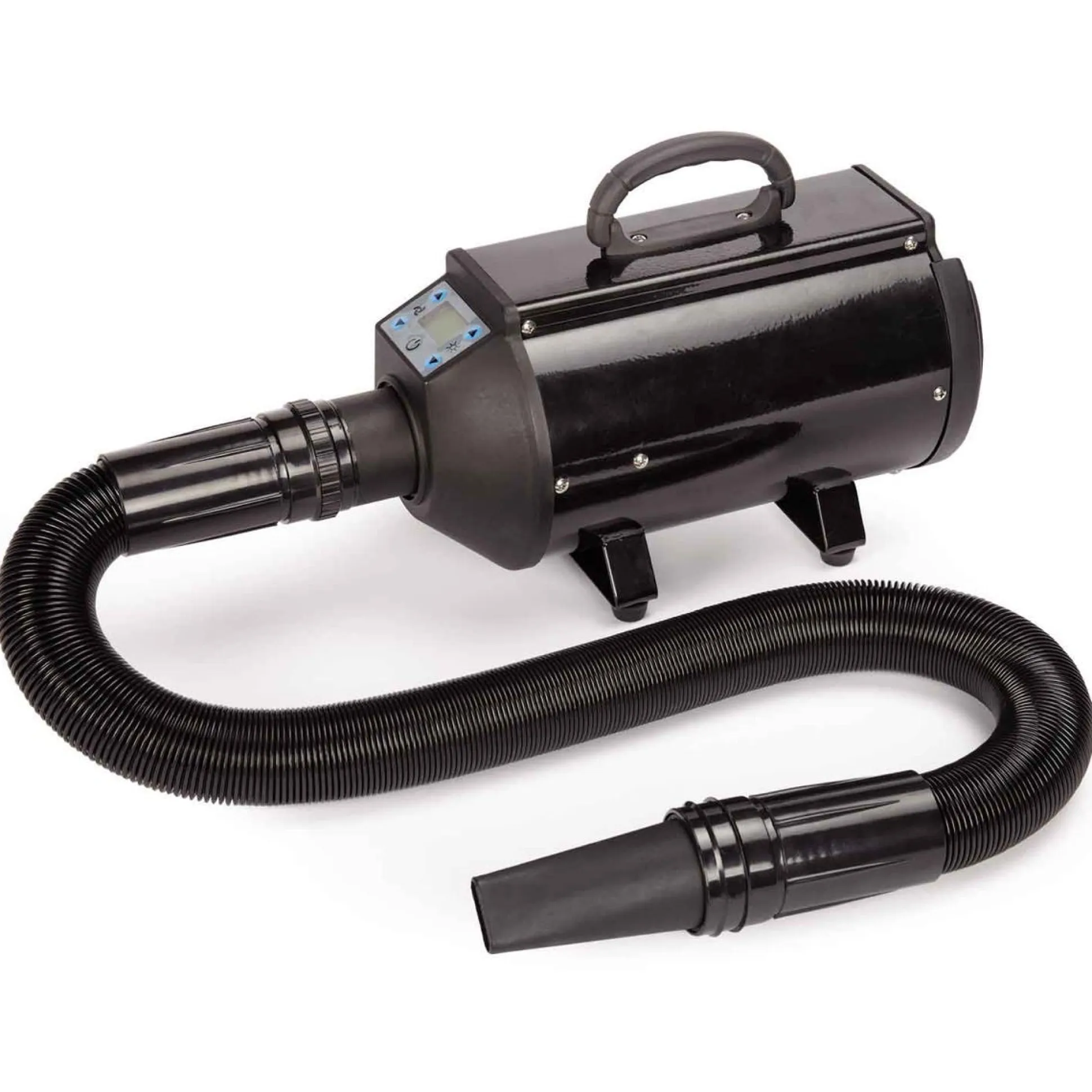

Master Equipment FlashDry Control Stand Dog Dryers

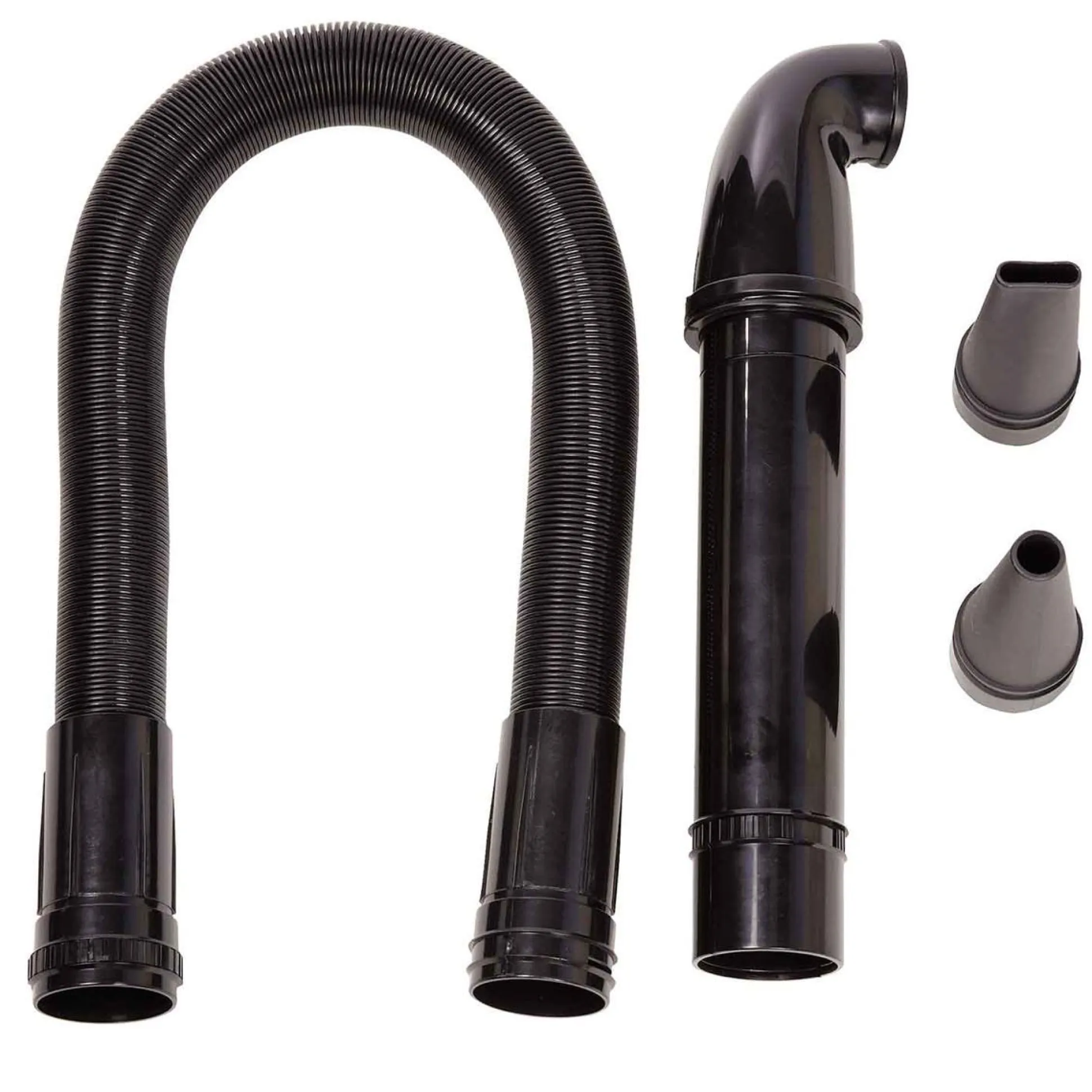

• Comes with these accessories: Stand, hands-free rigid
  arm, flexible hose, and two nozzles

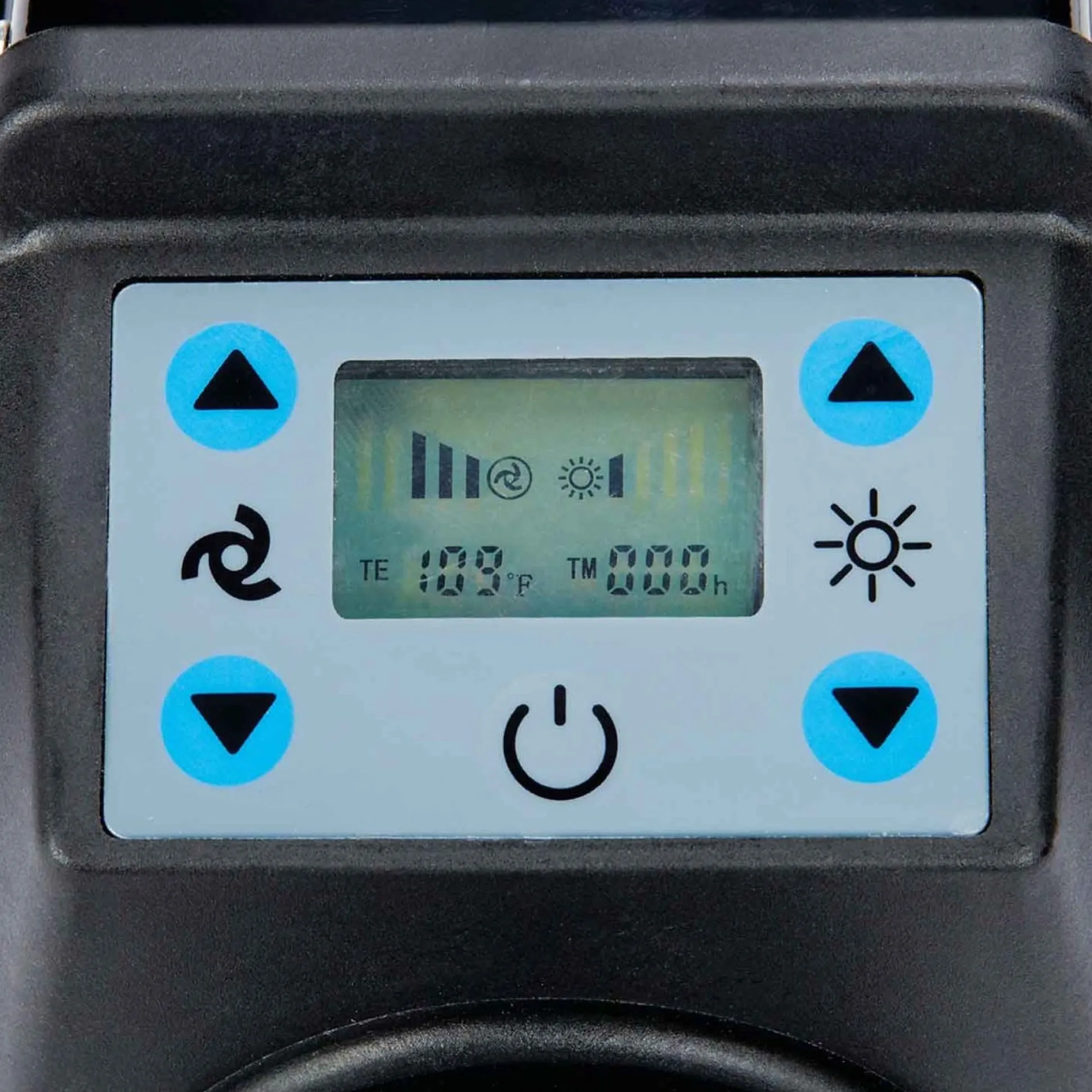

• User-friendly buttons surround an LCD screen that
  displays everything from the air output setting to the heat
  level
• The LCD screen also includes an “hours used indicator” to
  help users know when to perform maintenance on the unit
• Choose heat or no-heat option with just the touch of a
  button

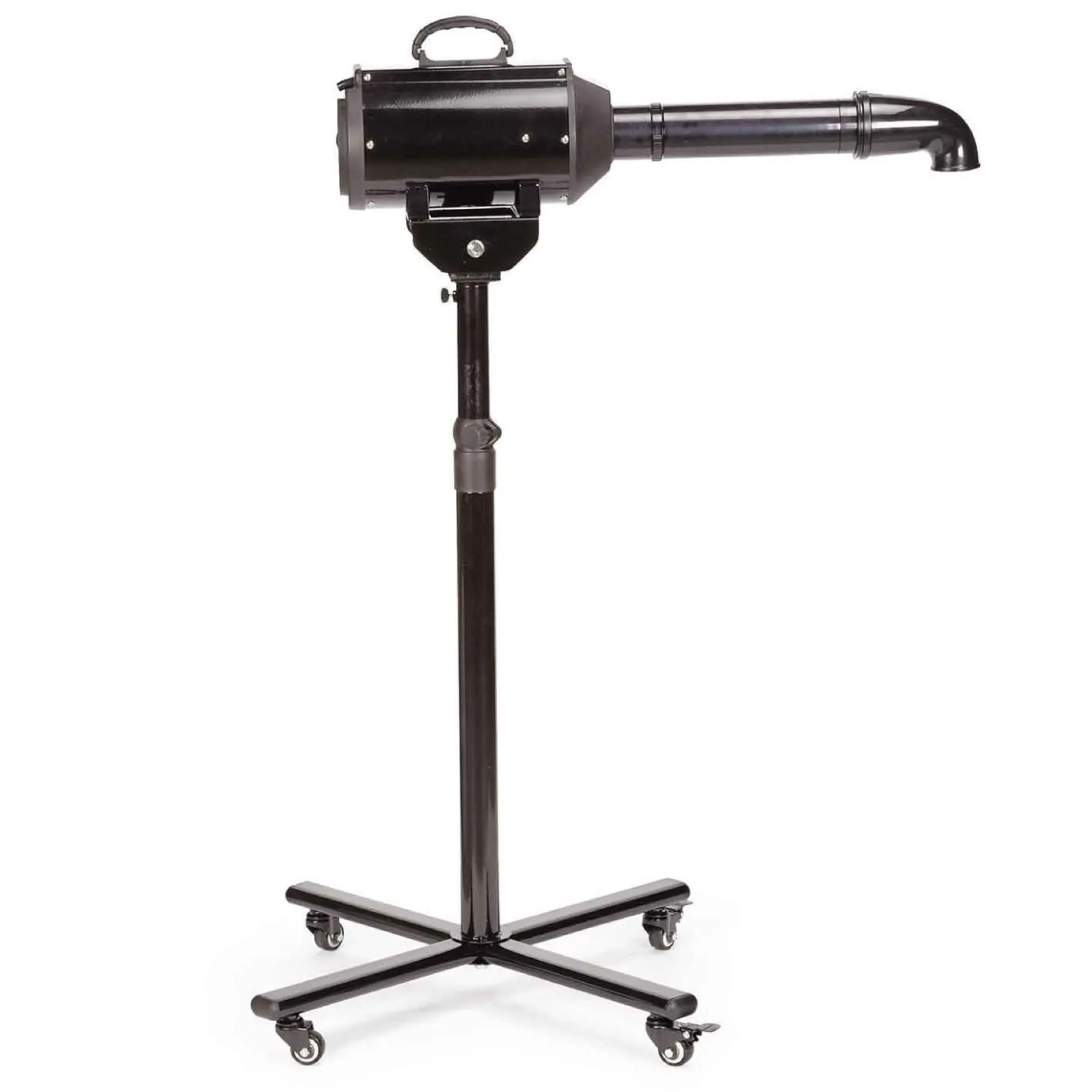

• Can be used as a canister or stand dryer (stand adjusts
  from 29½”–49½”)

Features a tip-resistant, 4-wheeled base for added stability in
use and when moving around the shop.

Specifications:

• Air Volume: 83.56 CFM
• Air Speed: 6181.027 FPM
• Heat: up to 141.8 degrees F
• Motor: 2.4 HP
• Amps: 16A
• Watts: 1820W
• Volts: 110V
• Weight:9 lbs
• One-year warranty

Materials: Metal and plastic
Canister Dimensions:14″L x 7″W x
6½”H
Care: Wipe down body of dryer with a damp
cloth, clean filters free of hair and debris daily, and change
carbon brushes when indicated.
Replacement Parts: TP263 Master Equipment
Flash Dry Replacement Carbon Brush 2-Pack

Assembly Instructions for TP2402 ME™ FlashDry Control Stand
Dryer

Parts List: Four rounded screws (Part H) are
used to attach feet to the dryer, and are in place on the
underside of the dryer body. Remove feet with their screws, sit
dryer on stand bracket, and reattachfeetto hold
dryer in place on stand.PartsC andD are
attached to the lower end of Bottom Pole (Part E). There is no
longer a bag of hardware shipped with the dryer. All hardware
parts are in place where they should be used.

Tools Required (Not Included)
Wrench
Phillips Screwdriver

1. Assemble the base by interlocking the two base bars
   (A).
2. Holding the two interlocked base bars together, carefully
   turn base upside down. Place the large round washer plate (B)
   at the intersection of the two base bars, aligning the holes.
   Next, place the lock washer (C) on the twist bolt (D). Insert
   the large twist bolt into the aligned holes. (Parts B, C, and
   D are attached to the bottom of Part A Bottom
   Pole.)
3. Holding the base bars together, turn the base rightside
   up. Be sure the large twist bolt is visible.
4. Screw the bottom pole (E) onto the large twist bolt. The
   end of the bottom pole with the large flat round plate is the
   end that screws onto the base.
5. Use a wrench (not included) to tighten the large twist
   bolt.
6. Insert the top pole (F) into the bottom pole. Secure the
   two poles together at desired height by tightening the knob
   on the side of the bottom pole.
7. Attach the dryer body (G) to the metal frame on the top
   pole using the four rounded screws with rubber feet (H).
   (Part H – 4 screws – are screwed into the bottom feet of the
   dryer.) Use a Phillips screwdriver to tighten the
   screws.
8. Attach the hose (I) to the dryer by pulling the plastic
   neck clasp away from the hose and pressing the hose firmly
   against the dryer body. Then release the plastic neck
   clasp.
9. The concentrator nozzles (J) fit directly onto the end of
   the hose.
10. To use the hands-free nozzle (K), remove the hose and
    attach the hands-free nozzle by using the plastic neck clasp
    as shown in step 8.

FlashDry Stand Dryer Operating Instructions

• • Use this dryer with 110/120-volt electrical systems. Do
  not exceed the capacity of the circuit the dryer is being
  used on.
• • Turn the dryer on by activating the on/off power
  switch.
• • Select the heat setting: I (low), II (high), or neutral
  (warm air)
• • Turn the air speed control knob to set the desired
  airflow.
• • When operating the dryer, take care not to blow air
  directly into pet’s eyes, ears, or other sensitive areas or
  body orifices.
• • Do not leave pet unattended while using this or any
  dryer.
• • Before shutting dryer off, turn the air speed control
  knob to the lowest setting. This will extend the life of the
  machine by reducing stress on the motor during startup.
• • Do not insert any pins or metal objects into the
  workings of the machine. This can result in electric shock or
  cause the machine to short-circuit.
• • Do not block or obstruct the filter or diffuser. Clean
  the air intake regularly and keep it unblocked. Do not allow
  water to be drawn into the air intake.
• • Take care to protect the dryer housing from shock or
  sudden impact.

Care Instructions

1. Carbon brushes must be changed every 600 to 700 hours of
   use.
2. Please clean the sponge filters on a regular basis by
   washing them or blowing air through them. Be sure to let the
   filters dry before reinstalling.
3. Keep the surface of the dryer clean and dry. Use a dry
   and soft cloth to clean the surface.
4. For stubborn stains and dirt, moisten the cloth with a
   mild detergent. Do not use harsh chemicals or cleaning
   agents.

Safety Instructions: To reduce the risk of fire,
electric shock, or injury to person when using your appliance,
please follow these basic safety precautions.

1. Read ALL instructions before using this appliance.
2. Use this dryer ONLY for its intended purpose for drying
   dogs and cats.
3. Never unplug the dryer by pulling on the power cord.
   Always grasp the plug firmly and pull straight out from the
   outlet.
4. To protect against electrical hazards, do not immerse the
   dryer in water or any liquid, nor allow water to be drawn
   into the air intake.
5. Do not operate the dryer in the presence of explosive
   fumes.
6. Closely supervise children when the dryer is in use.
7. Unplug the dryer before cleaning, before making any
   repairs, or when the dryer is not in use.
8. This dryer should be connected to a grounded power outlet
   with the proper electrical supply. Please see the operating
   instructions.
9. Repair or replace any loose or worn parts
   immediately.
10. Do not operate the dryer when parts are missing or
    broken.
11. Do not use the dryer outdoors.
12. Do not operate the dryer if it is damaged or
    malfunctioning in any way. Contact PetEdge Customer Service
    at 800-638-5754.
13. Avoid contact with hot surfaces.
14. Do not wrap cord around motor enclosure. Continuous heat
    from the motor may damage the cord insulation and cause
    electric shock.

Download Instructions (PDF
File)
Download Specifications
(PDF File)
